Air Shower for Cleanroom Contamination Control
A high-efficiency Air Shower system designed to remove dust particles from personnel and materials before entering cleanroom environments.
Widely used in semiconductor, pharmaceutical, battery, and precision manufacturing industries.
Key Benefits:
- High-speed clean air blowing system
- HEPA filtration efficiency up to 99.99%
- Customizable for different cleanroom layouts
What is an Air Shower?
An Air Shower is a cleanroom equipment installed at the entrance of controlled environments.
It uses high-velocity clean air jets to remove dust, particles, and contaminants from people or materials before entering the cleanroom.
The system helps maintain cleanroom standards and reduces contamination risks in production environments.
Air Shower Types
We provide different types of Air Shower systems to meet various cleanroom requirements
Single Person Air Shower
Material: Spray-coated exterior, stainless steel interior (all stainless steel available)
Stainless steel options: 304 or 201
Specification:
External Size: W1390*D1000*H2070
Air Shower Size: W790*D920*H1900
Double Person Air Shower
Material: All stainless steel (spray-coated exterior & stainless steel interior available as option)
Stainless steel options: 304 or 201
Specification:
External Size: W1390*D2000*H2070
Air Shower Size: W790*D1920*H1900
Multi-person Air Shower
Material: Spray-coated exterior, stainless steel interior (all stainless steel available)
Stainless steel options: 304 or 201
Specification:
External Size:W1390*D3000*H2070
Air Shower Size: W790*D2920*H1900
Corner Air Shower
Material: All stainless steel (spray-coated exterior & stainless steel interior available as option)
Stainless steel options: 304 or 201
Specification:
External Size:W1190*D1300*H2180
Air Shower Size:W790*D11600*H1900
Automatic Sliding Door Air Shower
Material: All stainless steel (spray-coated exterior & stainless steel interior available as option)
Stainless steel options: 304 or 201
Specification:
External Size:W1800*D2000*H2300
Air Shower Size:W1200*D1860*H2000
Face Recognition Air Shower
Material: All stainless steel (spray-coated exterior & stainless steel interior available as option)
Stainless steel options: 304 or 201
Specification:
External Size: W1390*D1000*H2070
Air Shower Size: W790*D920*H1900
| Item | Single Person | Double Persons | Multiple Persons |
|---|---|---|---|
| Overall Dimensions (mm) | W1390 × D1000 × H2070 | W1390 × D2000 × H2070 | W1390 × D3000 × H2070 |
| Air Shower Dimensions (mm) | W790 × D920 × H1900 | W790 × D1920 × H1900 | W790 × D2920 × H1900 |
| Nozzle Air Velocity (m/s) | 20–25 | 20–25 | 20–25 |
| Number of Nozzles | 12 | 24 | 36 |
| Shower Time (s) | Factory setting approx. 10s (adjustable 10–99s) | ||
| Door Material | Stainless Steel (SUS304) | ||
| HEPA Filter Dimensions | 610×610×120 ×2 | 610×610×120 ×4 | 610×610×120 ×6 |
| Filtration Efficiency | 99.99% @ 0.5 μm | ||
| Fan Power (W) | 750W ×2 | 750W ×4 | 750W ×6 |
| Fluorescent Lamp Power | 7W ×1 | 7W ×2 | 7W ×3 |
| Applicable Users | 1–2 persons | 2–4 persons | 3–6 persons |
Applications
The Air Shower system is widely used in:
- Semiconductor manufacturing
- Pharmaceutical cleanrooms (GMP environments)
- Lithium battery production
- Food processing facilities
- Electronics and PCB assembly
- Optical and precision manufacturing
Customization Capability
We provide full customization based on project requirements:
Size and structural design customization service
Door type options (manual swing door / sliding door / double-leaf door)
Material selection (SUS304 / SUS201 stainless steel / cold-rolled steel sheet)
Control system customization
Access control options (fingerprint / face recognition / password access)
Special cleanroom layout adaptation
Customer Case Showcase

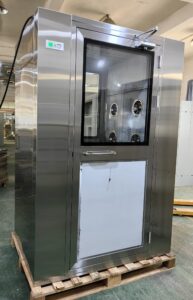

Air Shower Export Case: Customized Air Shower Successfully Delivered to a USA Customer
As global demand for
Case Study: Air Shower Room Solution for XuFuJi Food Cleanrooms 2025
Food Cleanrooms Clie
Case Study: Air Shower Room Solution for Winner Medical Cleanroom
Client Profile: Winn
FAQ – Air Shower
Q1: What is an Air Shower used for?
It is used to remove dust and particles from personnel or materials before entering a cleanroom.
Q2: How does an Air Shower work?
It uses high-speed HEPA-filtered air jets to blow away contaminants.
Q3: What is the standard air velocity?
Typically 20–25 m/s depending on cleanroom requirements.
Q4: Can Air Shower systems be customized?
Yes, we provide fully customized designs based on project needs.
