Cleanroom Airlock Design and Personnel Decontamination Process

The cleanroom airlock is a critical component in cleanroom construction. Its core function is to block contaminants from non-clean areas from entering the clean zone, ensuring the clean zone meets ISO cleanroom standards and providing a stable, compliant clean environment for high-precision production and laboratory applications such as semiconductors, pharmaceuticals, food processing, and electronics. Proper airlock design and standardized personnel decontamination procedures are central priorities in cleanroom engineering.

I. Core Design Principles of Cleanroom Airlocks

Cleanroom airlock design centers on three objectives: contamination control, operational efficiency, and regulatory compliance. Layout and functional zoning are optimized according to different ISO cleanroom classifications, with key details as follows:

1.Clear Zoning

The airlock is divided into four distinct functional zones: non-clean area, gowning area, air shower zone, and clean zone. This prevents contact between un-decontaminated personnel/materials and decontaminated personnel/materials, eliminating cross-contamination.

2.Logical Flow Separation

Personnel and material airlocks must be separate. The personnel airlock focuses on full decontamination, while the material airlock is equipped with a pass-through box. This ensures “no personnel cross-flow, no material mixing” and maintains an orderly, efficient decontamination process.

3.Classification Compatibility

Airlock airtightness and ventilation performance must match ISO cleanroom requirements. Walls, floors, and ceilings use smooth, easy-to-clean, non-shedding materials to minimize dust accumulation and microbial growth. Maintenance access is also reserved for future equipment upkeep and cleanliness validation.

II. Standard Personnel Decontamination Process (for Cleanroom Airlocks)

Personnel represent one of the primary sources of cleanroom contamination. Before entering the clean zone, staff must complete a standardized decontamination sequence in the airlock, following strict cleanroom protocols:

1.Gowning Preparation

Upon entering the gowning area, personal items must be stored in designated non-clean lockers. Staff then retrieve pre-decontaminated cleanroom garments from clean storage cabinets and dress properly: first cleanroom shoes, followed by cleanroom garments, hoods, and face masks. The cleanroom suit is adjusted to avoid wrinkles or damage that could trap particulate matter.

2.Hand Disinfection

After gowning, staff proceed to the disinfection area and use food-grade or pharmaceutical-grade cleanroom-compatible disinfectants. Hands are thoroughly sanitized using the seven-step handwashing technique, covering palms, backs, between fingers, fingertips, and wrists. Hands are air-dried naturally; wiping with cleanroom garments is prohibited to prevent secondary contamination.

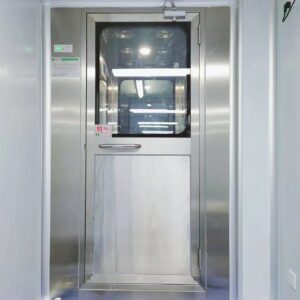

3.Air Shower Decontamination

Following disinfection, personnel enter the air shower and close the doors before activating the shower cycle. The air shower delivers high-velocity clean airflow to remove surface particles from cleanroom garments, focusing on shoulders, back, cuffs, and trouser cuffs. Staff rotate slowly during the cycle to ensure full coverage. The air shower stops automatically upon completion, and entry into the clean zone is only permitted afterward; unauthorized entry before the cycle ends is strictly forbidden.

III. Air Shower Selection and Configuration (Matching Airlock Traffic)

As the core decontamination equipment in the cleanroom airlock, air shower selection directly impacts decontamination efficiency and throughput. Sizing must account for maximum workshop occupancy, ISO cleanroom class, and environmental conditions to avoid bottlenecks:

1.Key Selection Criteria

Primary sizing is based on peak personnel flow, with adjustments for cleanroom classification: higher ISO classes require longer shower cycles (typically 15–30 seconds) and additional air shower units to maintain group decontamination efficiency.

2.Typical Configuration Example

For a workshop with 50 personnel, two double-person air showers are recommended, supporting up to six people simultaneously. With a 20-second cycle per person, the entire team can complete decontamination within approximately 15 minutes, enabling prompt cleanroom access and uninterrupted production startup.

3.Material Selection Guidelines

Material choice depends on workshop environment: cold-rolled steel with powder coating is suitable for standard dry workshops, offering cost efficiency and easy cleaning. For humid or corrosive environments (e.g., pharmaceutical and food facilities), stainless steel is preferred for superior moisture resistance, corrosion protection, and heat resistance, extending service life and preventing particle release from rusting.

IV. Conclusion

Cleanroom airlock design and personnel decontamination processes are foundational to reliable cleanroom operation, directly influencing ISO cleanliness compliance, operational efficiency, and production regulatory adherence.

By following the principles of zoned isolation and closed-loop workflow, implementing standardized gowning, hand disinfection, and air shower protocols, and configuring air showers matched to personnel volume and site conditions, cleanrooms effectively block dust, microbes, and other contaminants from non-clean areas, maintaining stable, certified cleanroom environments.
